Category: Clevis Hanger
Part Number: 11x

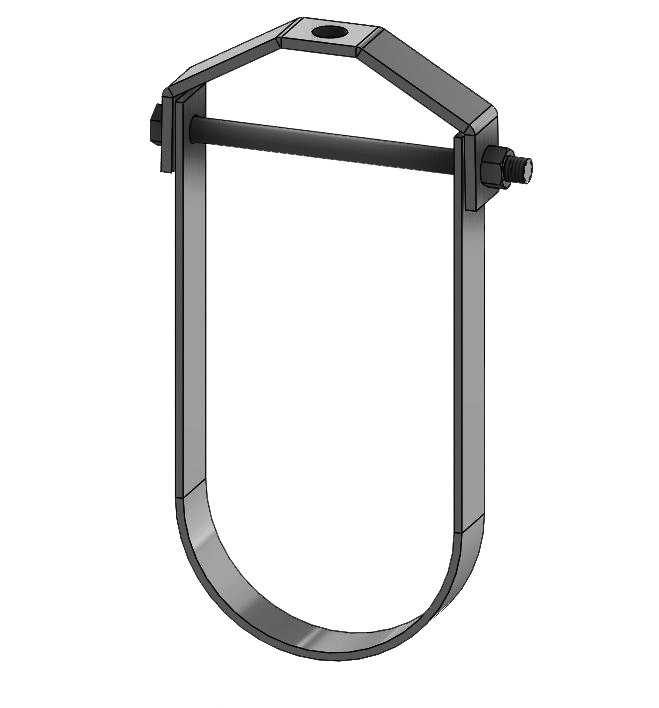

Fig. 11X Extended Bottom Clevis Hanger

Name: Fig. 11X Extended Bottom Clevis Hanger
SKU: 11x
Availability: InStock

Empire’s Fig. 11X Extended Bottom Clevis Hanger is designed for the suspension of insulated stationary pipe lines. The bottom section of the hanger is elongated to allow for easier installation of insulation. Stainless steel hangers are recommended for applications where protection from a corrosive environment is required.

Competitor Part Number: 300, 100EL, B3108, 415, W415, 210, 430, 1A

Empire 11X Extended Bottom Clevis Hanger

Specifications and Submittals

Empire Figure 11X – Clevis Hanger with Extended Bottom Submittal

Request CAD Drawing
